Multi-Purpose Suppression Agent

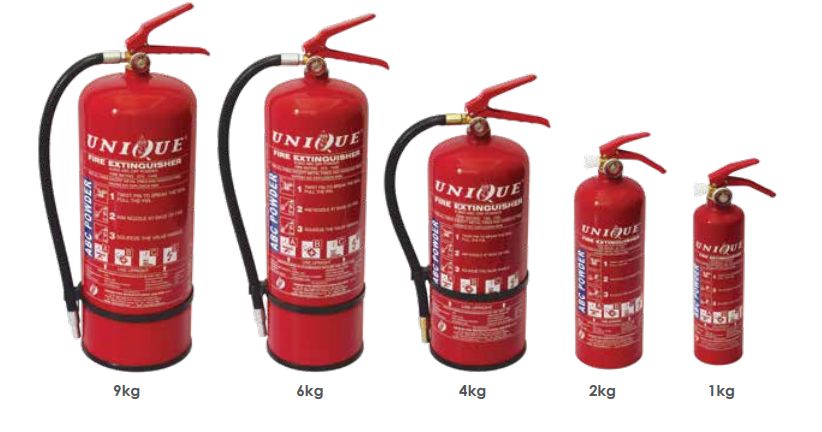

Portable Dry Powder Extinguishers
Class A B C E Ready
Stored Pressure Type
SIRIM / MS 1539 Approved
Cold Rolled Steel Body
The Portable ABC Dry Powder Fire Extinguisher series represents highly versatile, active protection equipment designed to tackle early-stage combustion emergencies before spread can occur. Sourced with high-purity dry powder extinguishant agents compressed under nitrogen propellants, these hand-held cylinders are optimized for multi-class containment fields. Fully certified under MS 1539 PART 1 legislative safety thresholds.
Technical Specification Matrix
| Model Number | UF-1 | UF-2 | UF-4 | UF-6 | UF-9 |
|---|---|---|---|---|---|
| Part Number | FEU-ID | FEU-2D | FEU-4D | FEU-6D | FEU-9D |
| Capacity Sizing | 1.0 kg | 2.0 kg | 4.0 kg | 6.0 kg | 9.0 kg |
| Fire Rating Output | 5A 21B | 8A 55B | 27A 144B | 13A 70B | 27A 144B |
| Discharge Duration | 7s | 12s | 14s | 18s | 20s |
| Full Weight (Approx) | 1.9 kg | 3.3 kg | 6.9 kg | 9.4 kg | 13.0 kg |
| Cylinder Diameter | 79 mm | 110 mm | 157 mm | 157 mm | 181 mm |
| Common Core Parameters |
Working Pressure: **12 bar (174 psi)** | Test Pressure: **25 bar (362.5 psi)** Temperature Performance: **-20°C to 60°C** | Propellant Agent: **Nitrogen** | Throw Range: **3-4m approx.** |
||||
